DC-DC Converter - Converter DC/DC, 50.4W, Uin 36÷72V, Uout 12VDC, Iout 4.2A, SD

Κωδικός: 40782

sd-50_series_dc-dc_converters.pdf PDF

SD-50C-12

Τιμή χωρίς ΦΠΑ:  29.99 €
Αξία ΦΠΑ:  7.20 €
Τελική με ΦΠΑ:  37.19 €
Ποσότητα:
Προειδοποίηση Μεγάλος χρόνος παράδοσης
Specifications
Manufacturer MEAN WELL
Type of converter DC/DC
Power 50.4W
Input voltage 36...72V
Output voltage 12V DC
Output current 4.2A
Kind of case 901
Body dimensions 159x98x38mm
Efficiency 75%
Operating temperature -10...60°C
Protection anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP
Insulation voltage 2kV
Mounting for building in
Manufacturer series SD
Number of outputs 1
Related items DRL-02, DRP-03

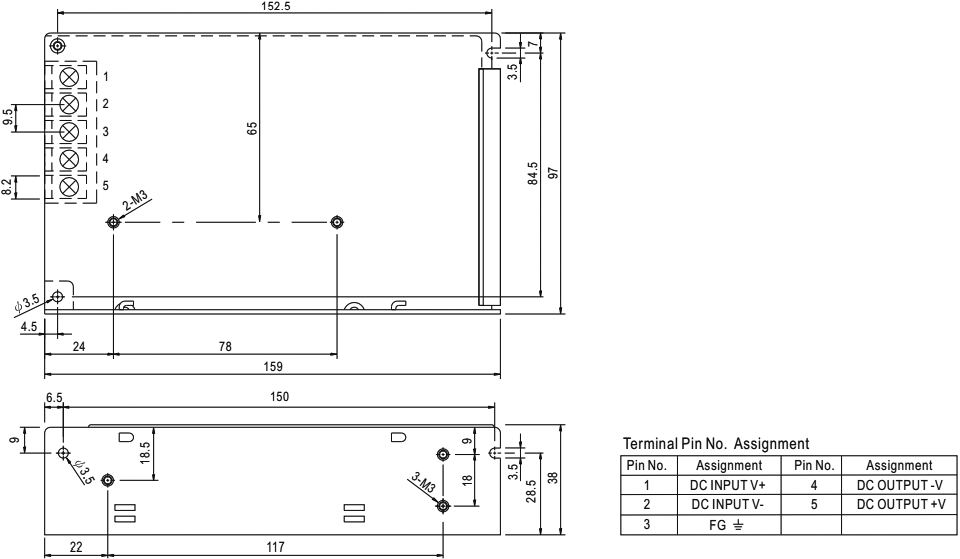

Dimensions  VIEW
Caution!
  • rated parameters obtained at full load

Διαθεσιμότητα: Με παραγγελία
