Converter DC/DC, 40W, Uin 9÷36V, Uout 12VDC, Iout 3330mA, 162g - 76.97 EUR : acdcshop.gr


--- - Converter DC/DC, 40W, Uin 9÷36V, Uout 12VDC, Iout 3330mA, 162g	Κωδικός: 36742
PDF	TMDC40-2412

Κάντε Κλικ για Μεγέθυνση Converter DC/DC, 40W, Uin 9÷36V, Uout 12VDC, Iout 3330mA, 162g

Τιμή χωρίς ΦΠΑ:	76.97 €
Αξία ΦΠΑ:	18.47 €
Τελική με ΦΠΑ:	95.44 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.

Specifications
Manufacturer	TRACO POWER
Type of converter	DC/DC
Power	40W
Input voltage	9...36V
Output voltage	12V DC
Output current	3330mA
Body dimensions	112x63.8x25.6mm
Weight	162g
Efficiency	90%
Operating temperature	-40...85°C
Switching frequency	285kHz
Protection	overload, short-circuit, voltage growth
Insulation voltage	2.5kV
Series	TMDC40
Number of outputs	1
Electrical connection	terminal block

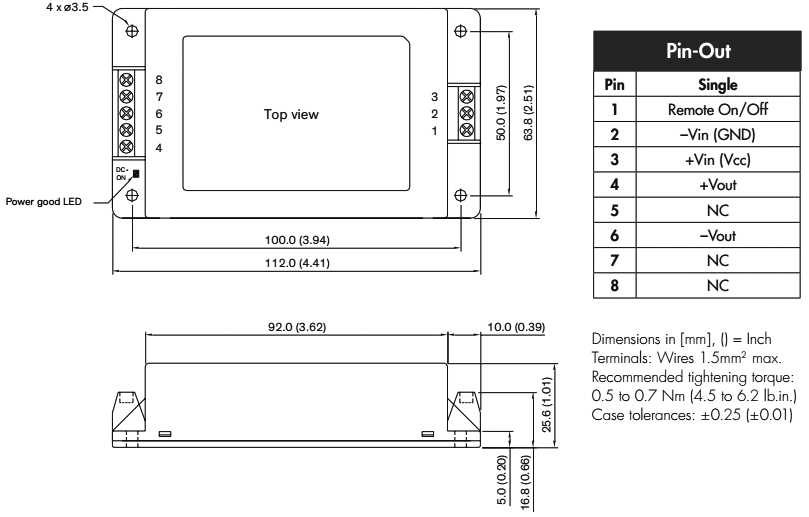

Dimensions	VIEW
Gross weight	210.06 g

Διαθεσιμότητα: Με παραγγελία
