Converter DC/DC, 30W, Uin 9÷36V, Uout 5VDC, Iout 6A, Case RSD-30 - 30.77 EUR : acdcshop.gr


DC-DC Converter - Converter DC/DC, 30W, Uin 9÷36V, Uout 5VDC, Iout 6A, Case RSD-30	Κωδικός: 32044
PDF	RSD-30G-5

Κάντε Κλικ για Μεγέθυνση Converter DC/DC, 30W, Uin 9÷36V, Uout 5VDC, Iout 6A, Case RSD-30

Τιμή χωρίς ΦΠΑ:	30.77 €
Αξία ΦΠΑ:	7.38 €
Τελική με ΦΠΑ:	38.15 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.

Specifications
Manufacturer	MEAN WELL
Type of converter	DC/DC
Power	30W
Input voltage	9...36V
Output voltage	5V DC
Output current	6A
Kind of case	RSD-30
Body dimensions	113 x 60 x 25mm
Weight	0.25kg
Efficiency	85%
Operating temperature	40...70°C
Protection	overload, against reverse polarity, overheating, voltage growth, short-circuit
Insulation voltage	4kV DC
Power supply/converter features	rated parameters obtained at full load
Mounting	for building in
Series	RSD-30
Number of outputs	1
Application	railway application

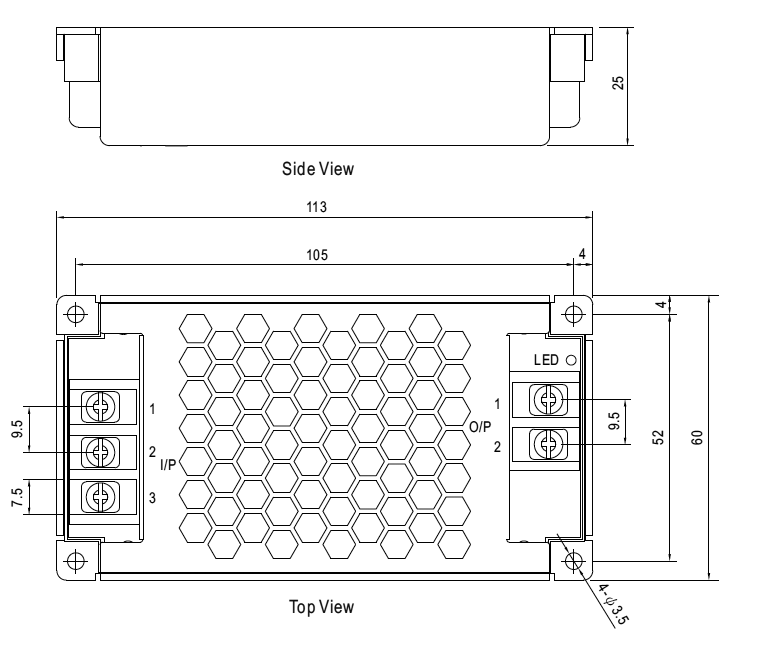

Dimensions	VIEW

Διαθεσιμότητα: Με παραγγελία
