Converter DC/DC, 1W, Uin 13.5÷16.5V, Uout 15VDC, Uout2 -15VDC - 4.12 EUR : acdcshop.gr


DC-DC Converter - Converter DC/DC, 1W, Uin 13.5÷16.5V, Uout 15VDC, Uout2 -15VDC	Κωδικός: 39889
	AM1DS-1515DJZ

Κάντε Κλικ για Μεγέθυνση Converter DC/DC, 1W, Uin 13.5÷16.5V, Uout 15VDC, Uout2 -15VDC

Τιμή χωρίς ΦΠΑ:	4.12 €
Αξία ΦΠΑ:	0.99 €
Τελική με ΦΠΑ:	5.11 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.

Specifications
Manufacturer	AIMTEC
Type of converter	DC/DC
Power	1W
Input voltage	13.5...16.5V
Output voltage	15V DC
Output voltage 2	-15V DC
Output current	34mA
Output current 2	34mA
Case	SIP7
Body dimensions	6x19.65x10.16mm
Weight	2.1g
Efficiency	81%
Operating temperature	-40...105°C
Protection	short circuit protection SCP
Insulation voltage	1500V DC
Mounting	THT
Manufacturer series	AM1DS-JZ

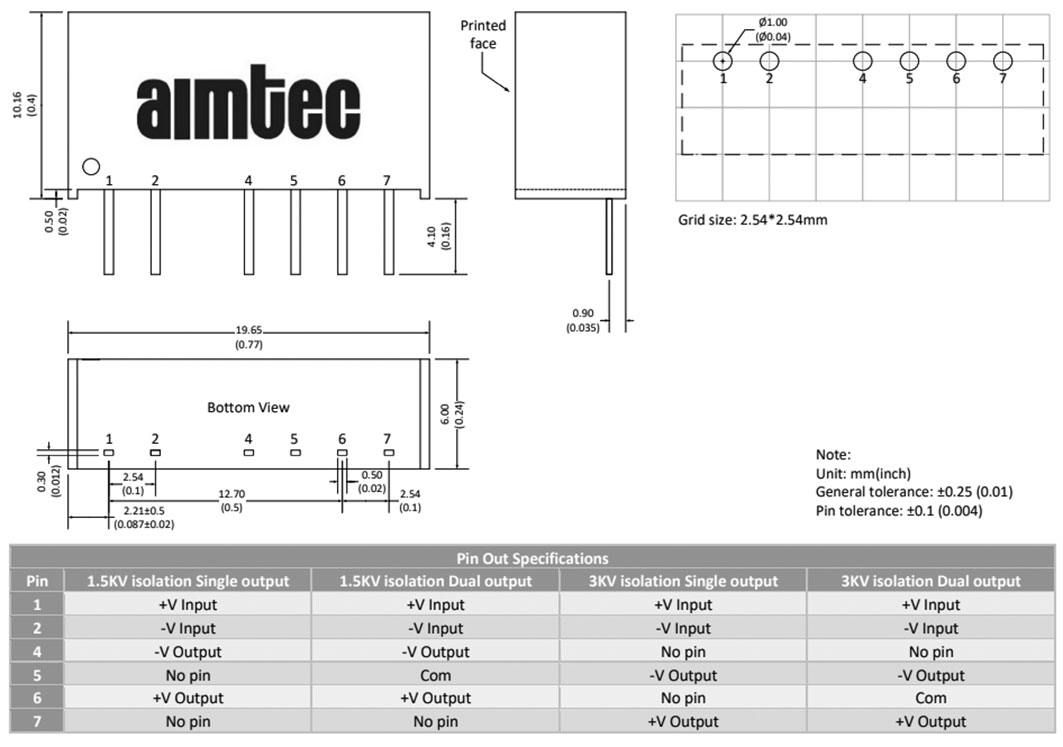

Dimensions	VIEW
Gross weight	2.006 g

Διαθεσιμότητα: Με παραγγελία
