Specifications |
| Manufacturer |
AIMTEC |
| Converter type |
DC/DC |
| Power |
1W |
| Input voltage |
5V |
| Output voltage |
9V DC |
| Output current |
111mA |
| Case |
SMD 8pin |
| Weight |
1.5g |
| Efficiency |
75% |
| Operating temperature |
40...85°C |
| Temperature coefficient |
0.03ppm/°C |
| Switching frequency |
100kHz |
| Input voltage tolerance |
10% |
| Output voltage tolerance |
5% |
| Output ripple |
150mVpp |
| Insulation voltage |
1kV DC |
| Min. insulation resistance |
1000MΩ |

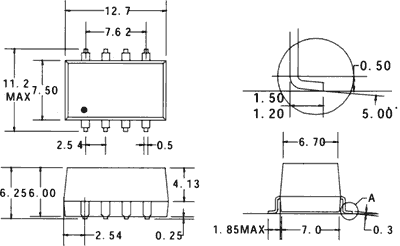

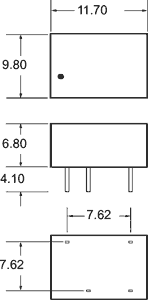

| Dimensions |
 VIEW |
| Design |
VIEW |
| |
|
