Converter DC/DC, 150W, Uin 33.6÷62.4V, Uout 12VDC, Iout 12.5A - 104.20 EUR : acdcshop.gr


DC-DC Converter - Converter DC/DC, 150W, Uin 33.6÷62.4V, Uout 12VDC, Iout 12.5A	Κωδικός: 41216
PDF	RSD-150C-12

Κάντε Κλικ για Μεγέθυνση Converter DC/DC, 150W, Uin 33.6÷62.4V, Uout 12VDC, Iout 12.5A

Specifications
Manufacturer	MEAN WELL
Type of converter	DC/DC
Power	150W
Input voltage	33.6...62.4V
Output voltage	12V DC
Output current	12.5A
Kind of case	978A
Body dimensions	189x77x36mm
Efficiency	92%
Operating temperature	-40...70°C
Insulation voltage	against reverse polarity, anti-overload OPP, anti-overvoltage OVP, overheating OTP, short circuit protection SCP
Mounting	4kV DC
Manufacturer series	for building in
Number of outputs	RSD
Application	1
Related items	railway industry
Conform to the norm	DRP-01A, DRP-04

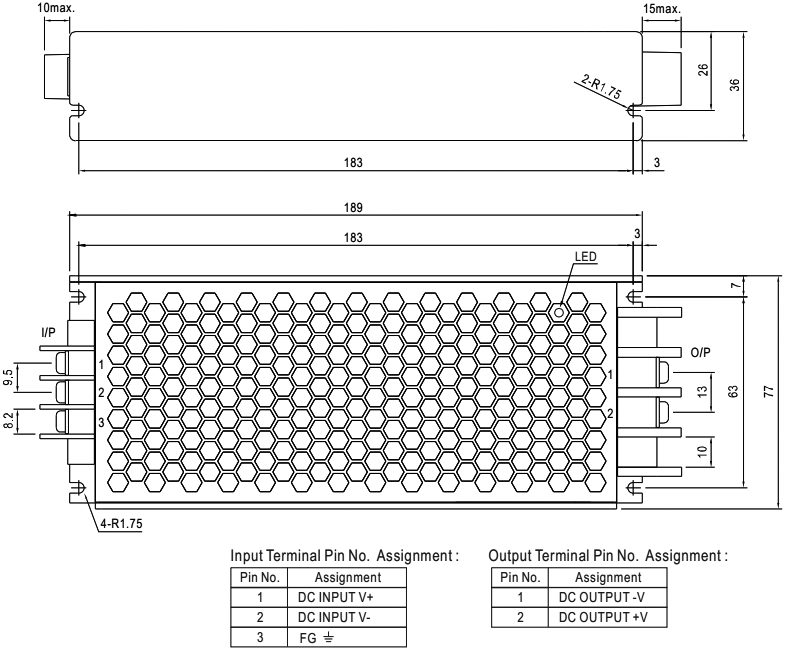

Dimensions	VIEW

Διαθεσιμότητα: Με παραγγελία
