Converter DC/DC, 100.8W, Uin 16.8÷31.2V, Uout 24VDC, Iout 4.2A - 68.66 EUR : acdcshop.gr


DC-DC Converter - Converter DC/DC, 100.8W, Uin 16.8÷31.2V, Uout 24VDC, Iout 4.2A	Κωδικός: 21902
	RSD-100B-24

Κάντε Κλικ για Μεγέθυνση Converter DC/DC, 100.8W, Uin 16.8÷31.2V, Uout 24VDC, Iout 4.2A

Specifications
Manufacturer	MEAN WELL
Type of converter	DC/DC
Power	100.8W
Input voltage	16.8...31.2V
Output current	4.2A
Kind of case	999A
Body dimensions	161x68x36mm
Weight	0.6kg
Efficiency	89%
Operating temperature	-40...70°C
Protection	against reverse polarity,
Insulation voltage	4kV DC
Power supply/converter features	rated parameters obtained at full load
Mounting	for building in
Series	RSD-100
Number of outputs	1
Application	railway application
Related items	DRP-01A,
Output voltage	24V DC

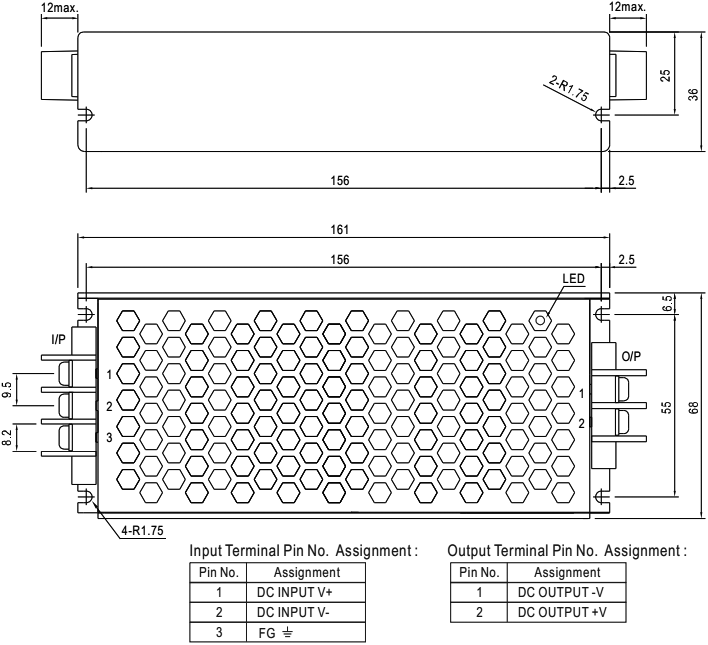

Dimensions	VIEW

Additional information Gross weight: 571.2 g

Διαθεσιμότητα: Με παραγγελία
