power supplies - Converter AC/DC, 5W, 85÷265VAC, Usup 120÷370VDC, Uout 12VDC, 75%

Prod code: 37208

MYRRA-47164 PDF

MYRRA-47164

Price:  6.02 €
VAT:  1.44 €
Final price with tax:  7.46 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer MYRRA
Type of converter AC/DC
Power 5W
Supply voltage 85...265V AC,   120...370V DC
Output current 420mA
Efficiency 75%
Body dimensions 32.8x27.8x21.8mm
Mounting PCB
Protection overheating,   overload,   short-circuit
Series 47000
Operating temperature max. 50°C
Output voltage 12V DC

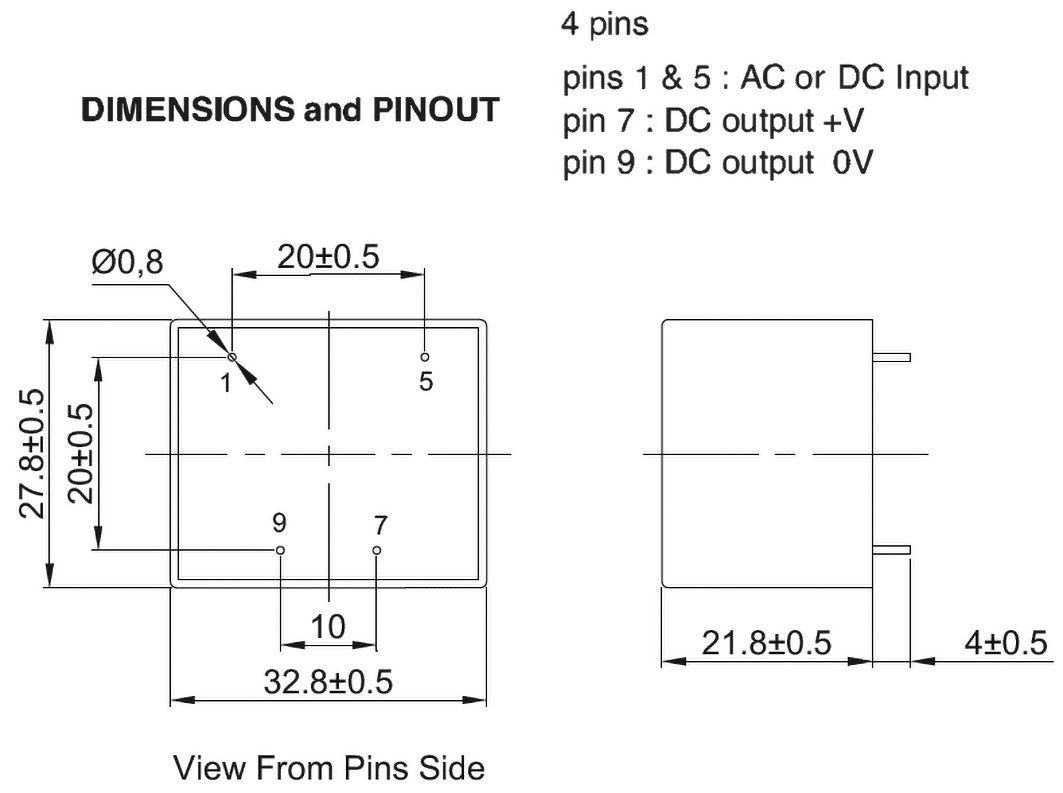

Dimensions  VIEW
Gross weight 1 g

Power supply/converter features
  • no load power consumption <0,3W
  • rated parameters obtained at full load
Availability: With order
