Specifications |
| Manufacturer |
NINIGI |
| Connector |
socket |
| Connector type |
RJ12 |
| Number of pins |
6 |
| Connector variant |
with panel stop blockade |
| Contact material |
phosphor bronze |
| Contact plating |
gold plated |
| Flammability rating |
UL94V-0 |
| Type of pin configuration |
6p6c |
| Enclosure material |
polyester |
| Electrical mounting |
THT |
| Spatial orientation |
straight |
| A dimension |
15.9mm |
| B dimension |
13.46mm |
| C dimension |
9.63mm |
| D dimension |
6.35mm |

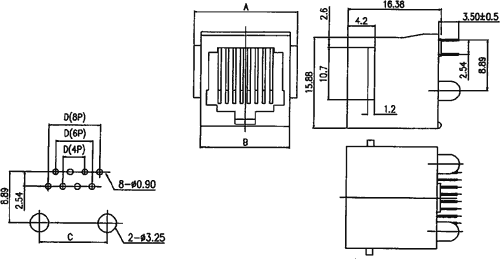

| Dimensions |
 VIEW |
| |
|
