Connector D-Sub - Connector D Sub female angled PIN 25 THT UNC4 40 gold flash

Prod code: 11895

L77SDB25S1ACH PDF

L77SDB25S1ACH

Price:  3.00 €
VAT:  0.72 €
Final price with tax:  3.72 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer AMPHENOL
Connector socket
Connector type D-Sub
Number of pins 25
Connector type female
Locking system screws
Spatial orientation angled 90°
Electrical mounting THT
Thread UNC4-40
Operating temperature 55...125°C
Contact material phosphor bronze
Contact plating gold flash
Rated current 5A
Max. contact resistance: 15mÙ
Insulator material thermoplastic
Rated voltage 250V

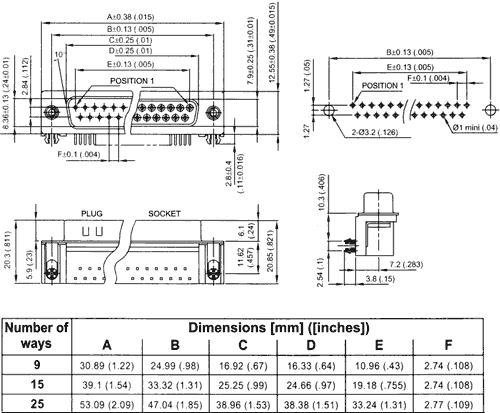

Dimensions  VIEW
Design  VIEW

Availability: With order
