Automatic Fuse - Circuit breaker, Urated 240VAC, 60VDC, 3.5A, DPST, Poles 2, 35g

Prod code: 38059

TA45-A126L035U3 PDF

TA45-A126L035U3

Price:  32.74 €
VAT:  7.86 €
Final price with tax:  40.59 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer SCHURTER
Type of protection circuit breaker
Current rating 3.5A
Contacts configuration DPST
Number of poles 2
Mounting on panel,   SNAP-IN
Operating temperature -10...55°C
Leads 6,3x0,8mm connectors
Mounting hole diameter 45x21.7mm
Weight 35g
Actuator colour orange
Breakers application household appliance,   industrial appliance
Dielectric strength 4kV AC
Button marking 0-I
Backlight colour orange
Illumination voltage 230V
Rated voltage 60V DC,   240V AC

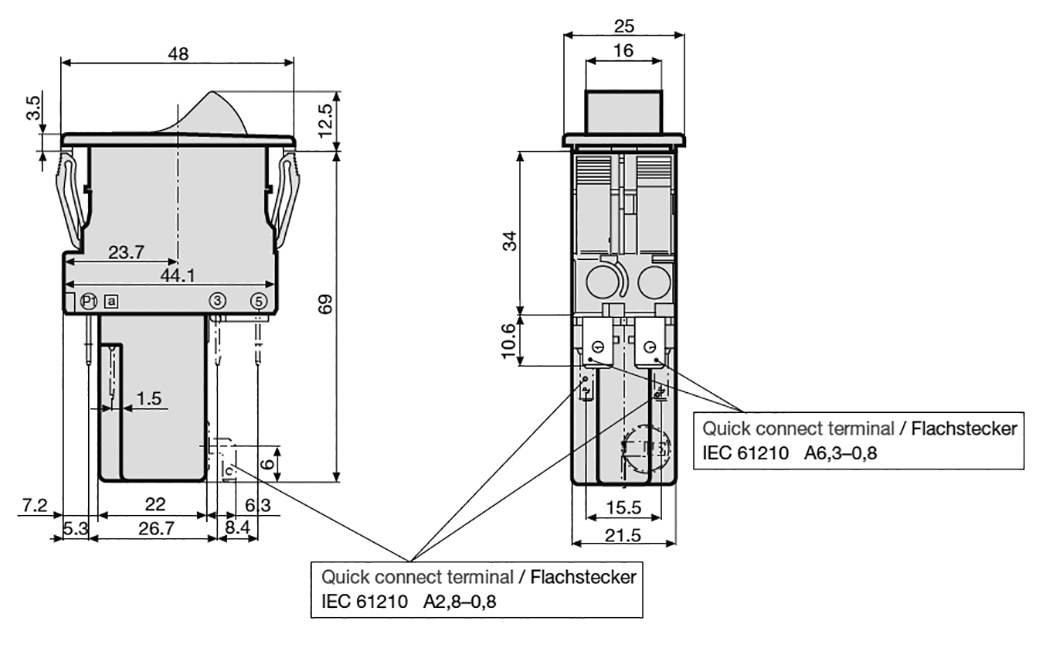

Dimensions  VIEW
Gross weight 50.49 g

Availability: With order
