Automatic Fuse - Circuit breaker, 230/400VAC, Inom 13A, Poles 1, Charact B, 6kA

Prod code: 40957

S200-S200M-EN.pdf PDF

S201-B13

Price:  7.29 €
VAT:  1.75 €
Final price with tax:  9.04 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer ABB
Type of protection circuit breaker
Current rating 13A
Number of poles 1
Mounting for DIN rail mounting
Characteristics B
Short circuit breaking capacity 6kA
IP rating IP20
Cross section of connecting wires 1...25mm2
Operating temperature -25...55°C
Electrical life 20000 cycles
Conform to the norm S200
Manufacturer series S2C-H11L
Related items MCB
Trade name 230/400V AC

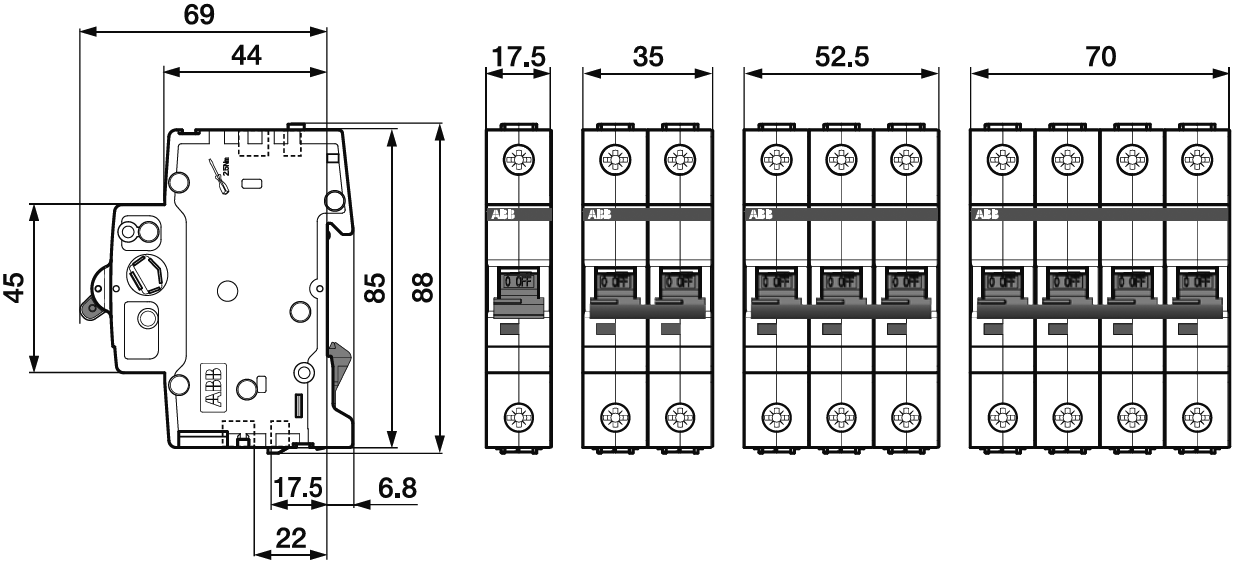

Dimensions  VIEW

Availability: With order
