Γέφυρες Ανόρθωσης - Bridge rectifier single-phase, Urmax 800V, If 3A, Ifsm 50A, BR-3

Κωδικός: 41472

BR38-DC

Τιμή χωρίς ΦΠΑ:  0.75 €
Αξία ΦΠΑ:  0.18 €
Τελική με ΦΠΑ:  0.93 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer DC COMPONENTS
Type of bridge rectifier single-phase
Max. off-state voltage 0.8kV
Load current 3A
Max. forward impulse current 50A
Version square
Case BR-3
Electrical mounting THT
Leads wire Ø 0.9mm
Features of semiconductor devices plastic case
Kind of package bulk
Max. forward voltage 1.1V

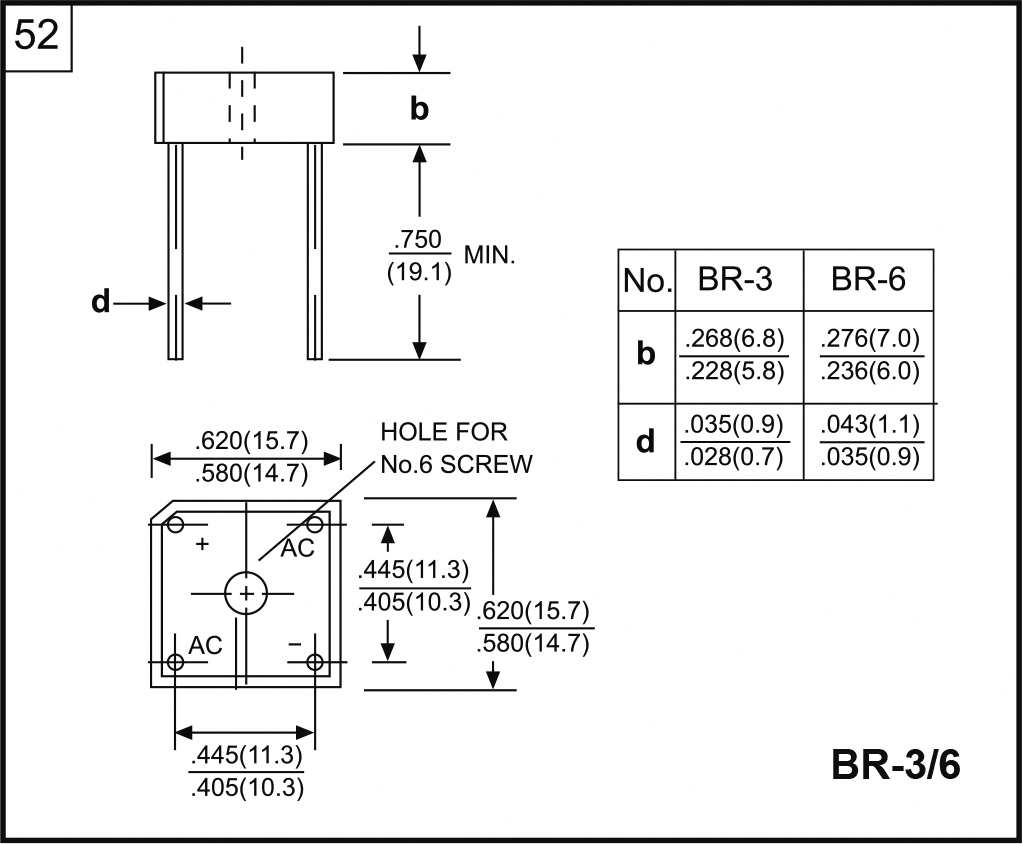

Dimensions  VIEW

Διαθεσιμότητα: Με παραγγελία
